Application Industries
Semiconductor Packaging Testing
Evaluates the thermal stress fatigue and interfacial delamination risks of chip packaging materials under rapid alternating temperatures from -55°C to +150°C.
Automotive Domain Controllers
Validates the software operation stability and hardware durability of smart cockpit domain controllers under drastic temperature changes.
Industrial Robot Joints
Tests the positioning accuracy retention and lubrication performance changes of robot servo joints under continuous temperature alternation.
Product Features
High-Speed Temperature Switching

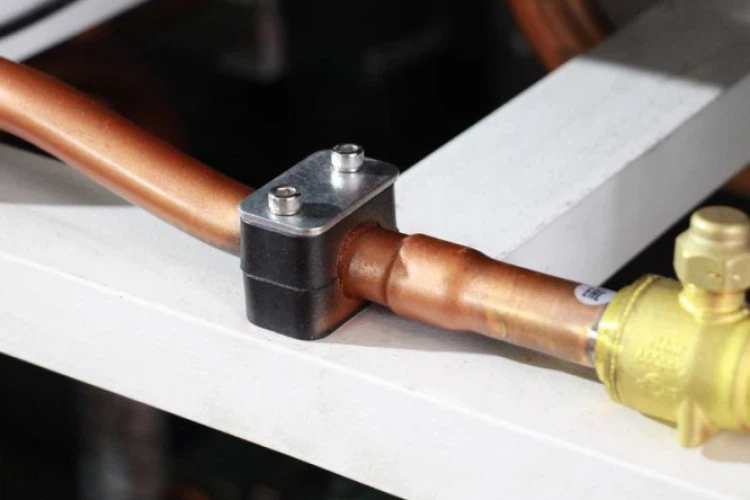

Utilizes dual refrigeration systems and pneumatic air damper design to achieve temperature switching time ≤5 minutes within the range of -70°C to +180°C.
Full-Range Uniform Temperature Control
Based on dynamic airflow balance algorithms, the temperature uniformity in the working area is ≤±1.0°C, supporting precise temperature field control under loaded conditions.

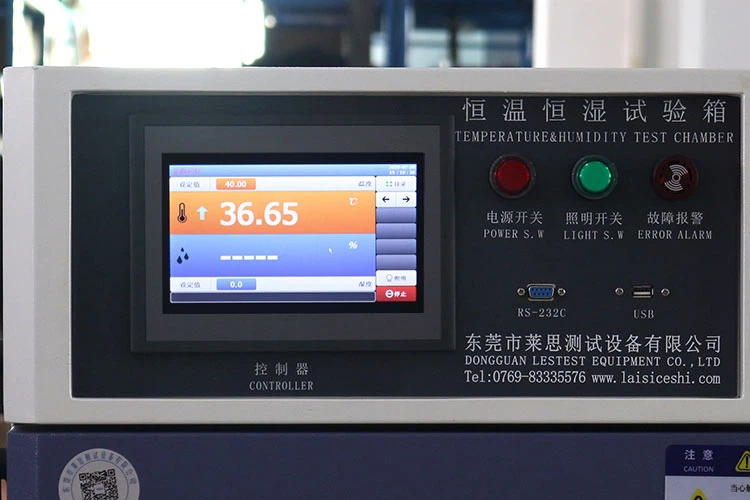

Digital Test Management
Built-in SQLite database, capable of storing 1,000 sets of test curves, supporting real-time test data and failure mode analysis.
Sales Q&A
Q: Is the alternating rate affected by the thermal capacity of the load?
A: The device is equipped with a load thermal capacity adaptive algorithm that dynamically adjusts refrigeration/heating power, ensuring temperature change rate deviation ≤±8% under different loads.
Q: Can temperature-vibration stress testing be simulated?
A: Optional vibration table interface is available, enabling synchronized testing of temperature alternation and multi-axis vibration via time/event triggers.
Q: Key maintenance points for long-term high-frequency alternating testing?
A: It is recommended to inspect air damper seals every 500 hours, calibrate temperature sensors every 2,000 hours, and regularly clean condensers in the refrigeration system.
